MOPP Release Film is commonly used as a release liner for single-sided and double-sided adhesive tapes in pressure-sensitive adhesive converting.
MOPP Release Film

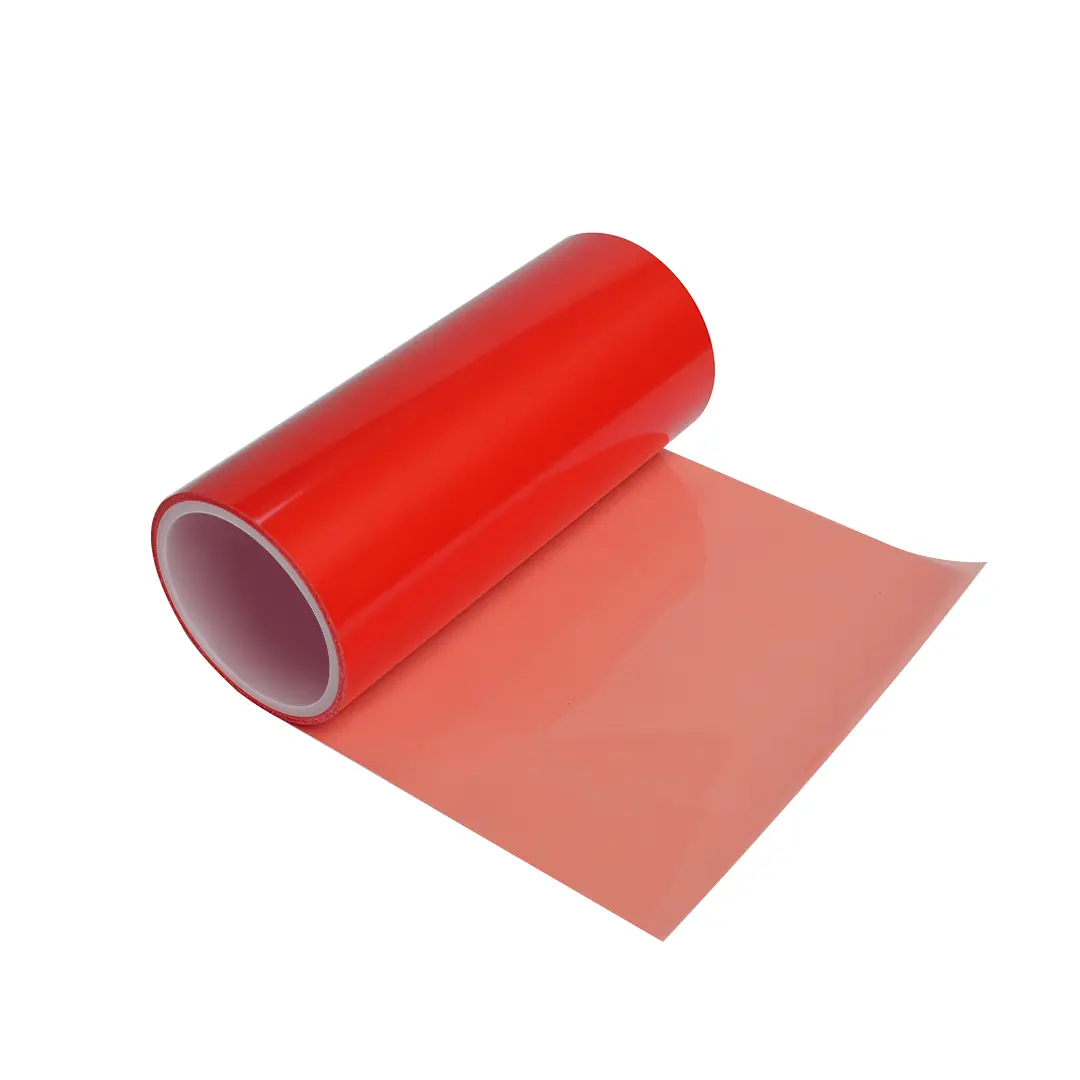

MOPP Release Film is a film-based release liner with silicone coating, designed for pressure-sensitive adhesive tape conversion.
YG Group offers single-side and double-side silicone-coated MOPP release film for different tape constructions and release requirements.
Available grades include 54 ± 3 μm and 75 ± 3 μm, with specified release performance for single-sided and double-sided adhesive tape applications.
Features:
- Single- or Double-Side Silicone Coating
- Film-Based Release Liner
- Designed for Adhesive Tape Applications
Applications:
- Single-Sided Adhesive Tapes
- Double-Sided Adhesive Tapes
Available Specifications
|
Single-Side Silicone Coating MOPP |
|||||
| Caliper （µm） |
Standard Release Force |
Aged Release Force (g/25 mm) |
Residual Adhesion （%） |
Width Range (mm) |
Color |
| 54±3 | 6-12 | 8-15 | ≥85% | 500 - 1300 | Red |
| 75±3 | 6-12 | 8-15 | ≥85% | ||
|
Double-Side Silicone Coating MOPP |
|||||||||
| Caliper （µm） |
Tensile Strength MD （kN/m） |
Tensile Strength |
Standard Release Force |
Standard Release Force |
Aged Release Force SIDE A (g/25 mm) |
Aged Release Force SIDE B (g/25 mm) |
Residual Adhesion （%） |
Width Range (mm) |
Color |
| 75±3 | ≥10 | ≥10 | 5-10 | 5-12 | 10-20 | 15-25 | ≥85% | 500 - 1300 | Red |
*We support custom options, including:
Custom options include basis weight, silicone coating side, release level, roll width, roll length, core size, color, packaging, and jumbo or slit-roll supply.
Release Performance for Adhesive Tape Converting
YG MOPP Release Film provides specified standard release force, aged release force and residual adhesion for adhesive tape converting.
For single-side silicone-coated grades, the listed 54 ± 3 μm and 75 ± 3 μm clear films provide a standard release force of 6–12 g/25 mm, an aged release force of 8–15 g/25 mm, and residual adhesion of ≥85%.
For the double-side silicone-coated 75 ± 3 μm red grade, Side A and Side B have separately specified release-force ranges, supporting double-sided tape constructions requiring controlled release behavior on both sides.
Why Choose YG MOPP Release Film?
Single- & Double-Side Silicone Options
Single-side and double-side silicone-coated MOPP Release Film options are available for different adhesive tape constructions.
Defined Release Performance
Standard release force, aged release force and residual adhesion are specified for the listed grades, providing measurable data for product matching.
Side A / Side B Release Control
The double-side silicone-coated grade provides separately specified Side A and Side B release values for double-sided adhesive tape applications.
Clear & Red Film Options
Clear film is available for the listed single-sided tape grades, while the listed double-sided tape grade is supplied in red.
