5–10gf/25 mmEasy
Release Liner Options: Paper and Film
A release liner is a paper or film substrate with a controlled-release surface that protects pressure-sensitive adhesive during coating, converting, storage and application.
| BASE MATERIAL | BASIS WEIGHT / THICKNESS | Color | SILICONE COATING | WIDTH RANGE | TYPICAL APPLICATIONS |
|---|---|---|---|---|---|
| Glassine | 40-120 g/㎡ | White/Yellow/Blue/Havana | C1S / C2S | 20-2,200mm | Labels/Tapes/Medical/Industry |
| CCK | 30-137 g/㎡ | White | C1S | 20-2,200mm | Labels/Tapes/Color Cutting Vinyl/Medical/Industry |
| PEK | 40-150 g/㎡ | White/Yellow | C1S / C2S | 20-2,200mm | Labels/Tapes/Medical/Self-Adhesive Vinyl/Industry |
| PET | 12-137 μm | Clear/White | C1S / C2S | 20-2,200mm | Labels/Tapes/Medical/Color Cutting Vinyl/Industry |
| PP | 25-140 μm | Clear/White/Yellow | C1S | 500-1,600mm | Foam Tape/Die Cutting/Butyl Tape/Aluminum Foil Tape/Industry |
| MOPP | 12-125 μm | Red | C1S / C2S | 20-1,600mm | MOPP Tapes/Industry |
| MGK | 30-50 g/㎡ | White | C1S | 20-2,200mm | Lint Roller/Hygiene Products |
Need another construction? Barrier coatings, surface treatment, antistatic, embossing, printing, slitting and sheeting can be discussed. | |||||
Final specifications should be confirmed based on the adhesive system, target release force, converting process and end-use application.
Release Material Solutions for Diverse Converting Applications
Match the liner construction to your adhesive, converting process and end-use requirements.

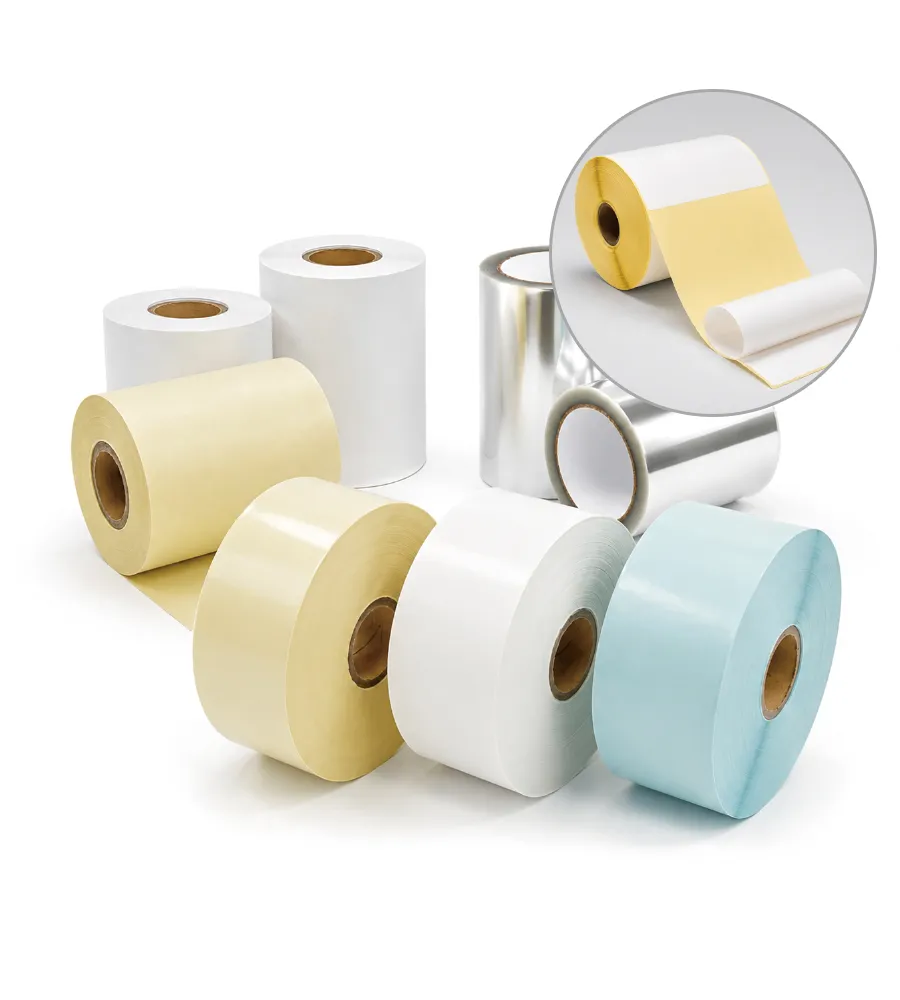

Release Liners for Reliable Label Converting
YG Group offers glassine, CCK, PEK and PET release liners engineered for stable release, high-speed converting and compatibility with common label adhesive systems.
Consistent release for reliable die-cutting, matrix stripping and automatic dispensingExcellent flatness and web stability for efficient printing and convertingCompatible with water-based, hot-melt and solvent-based adhesives
Material Options
Glassine, CCK, PEK and PET
Specification Range
40–140 g/m² paper liners, 23–50 μm PET liners and widths from 20 to 2200 mm
Typical Applications
Flexo, offset and digital printing, die-cutting and automatic labeling
Explore Related Materials and Applications
Related Materials and End-Use Solutions

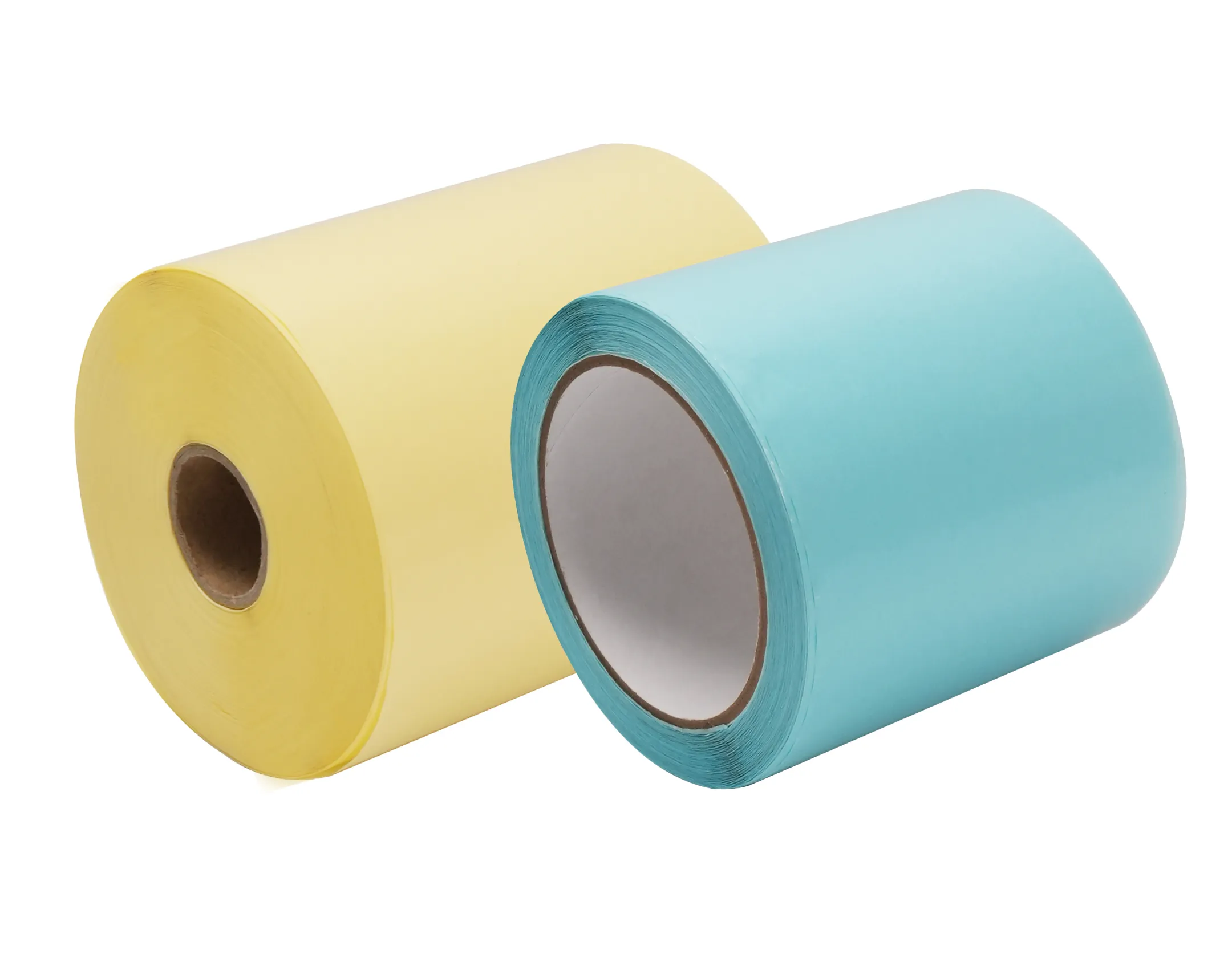

Siliconized Glassine Paper
Stable release for labels and tapes

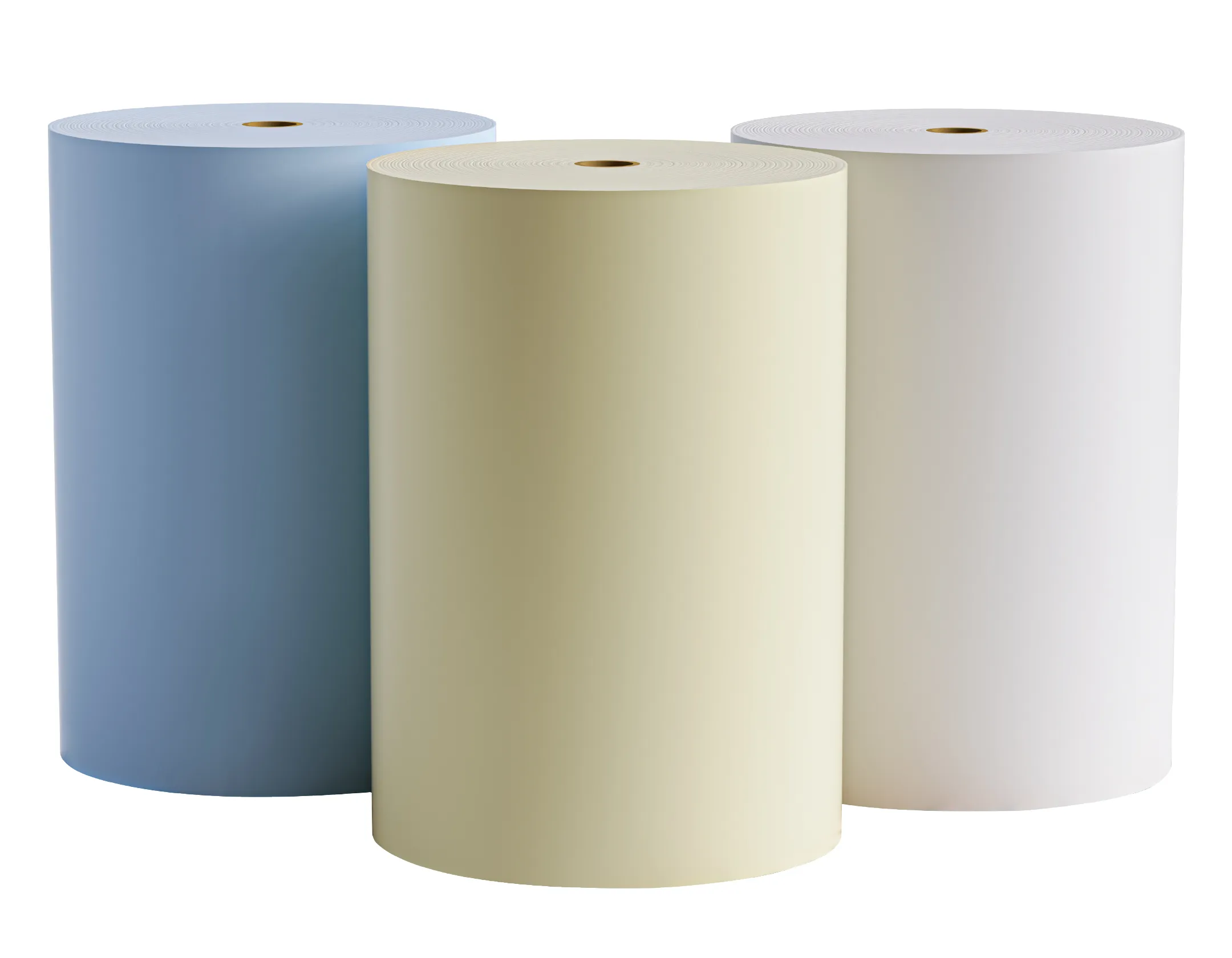

Glassine Base Paper
Smooth base for silicone coating

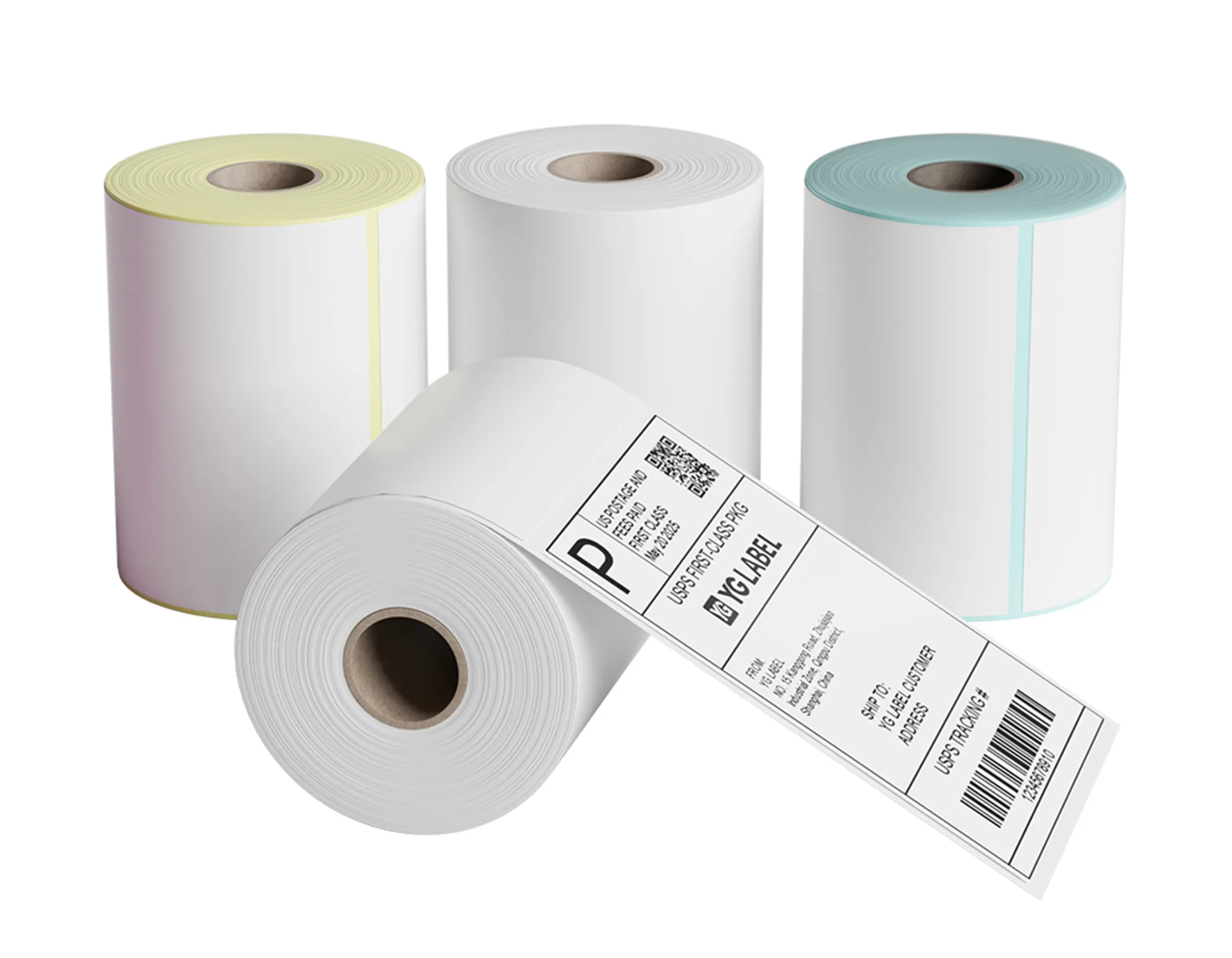

Logistics Label Materials
Paper and film label constructions

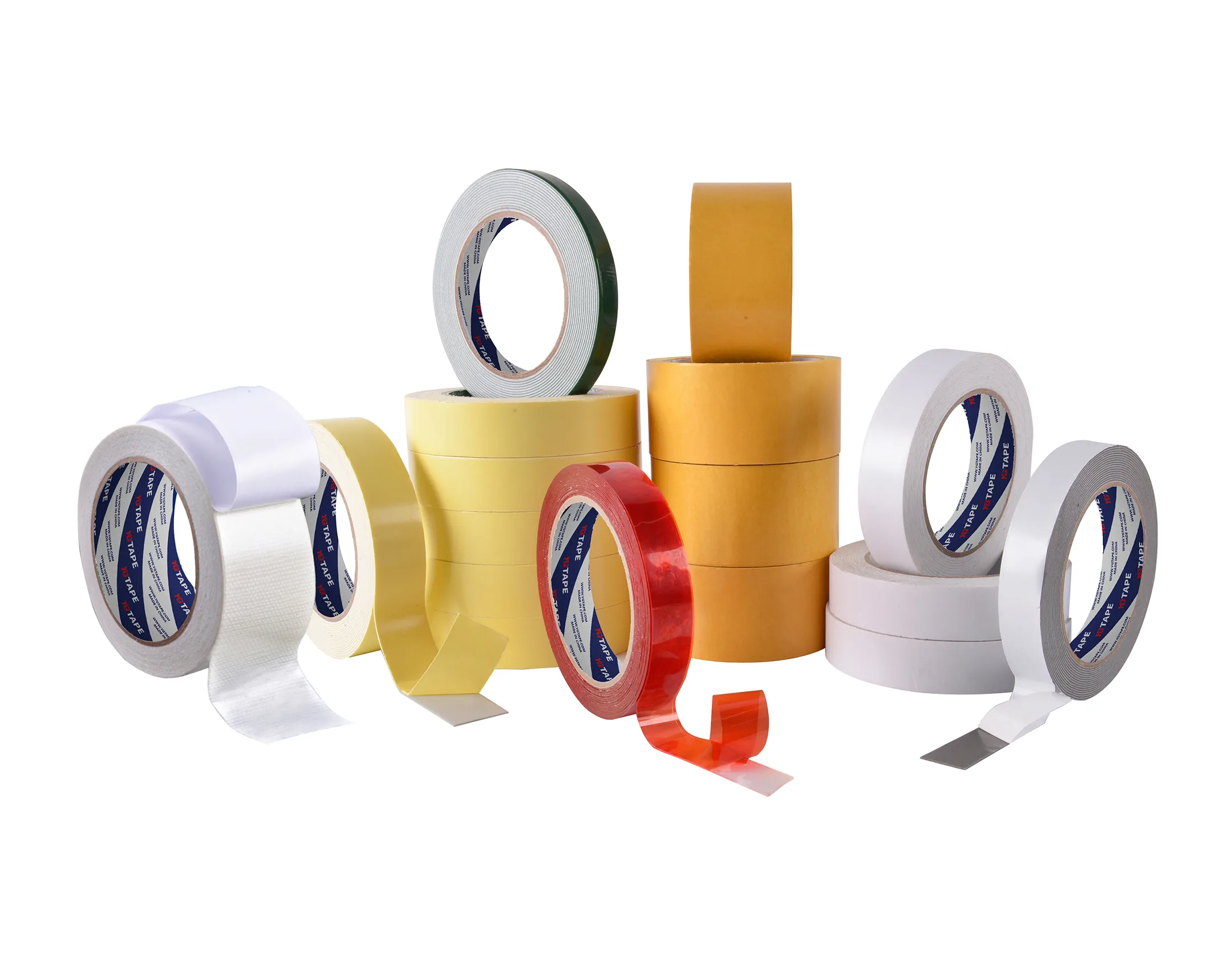

Double-Sided Tape Solutions
Liner-backed bonding materials

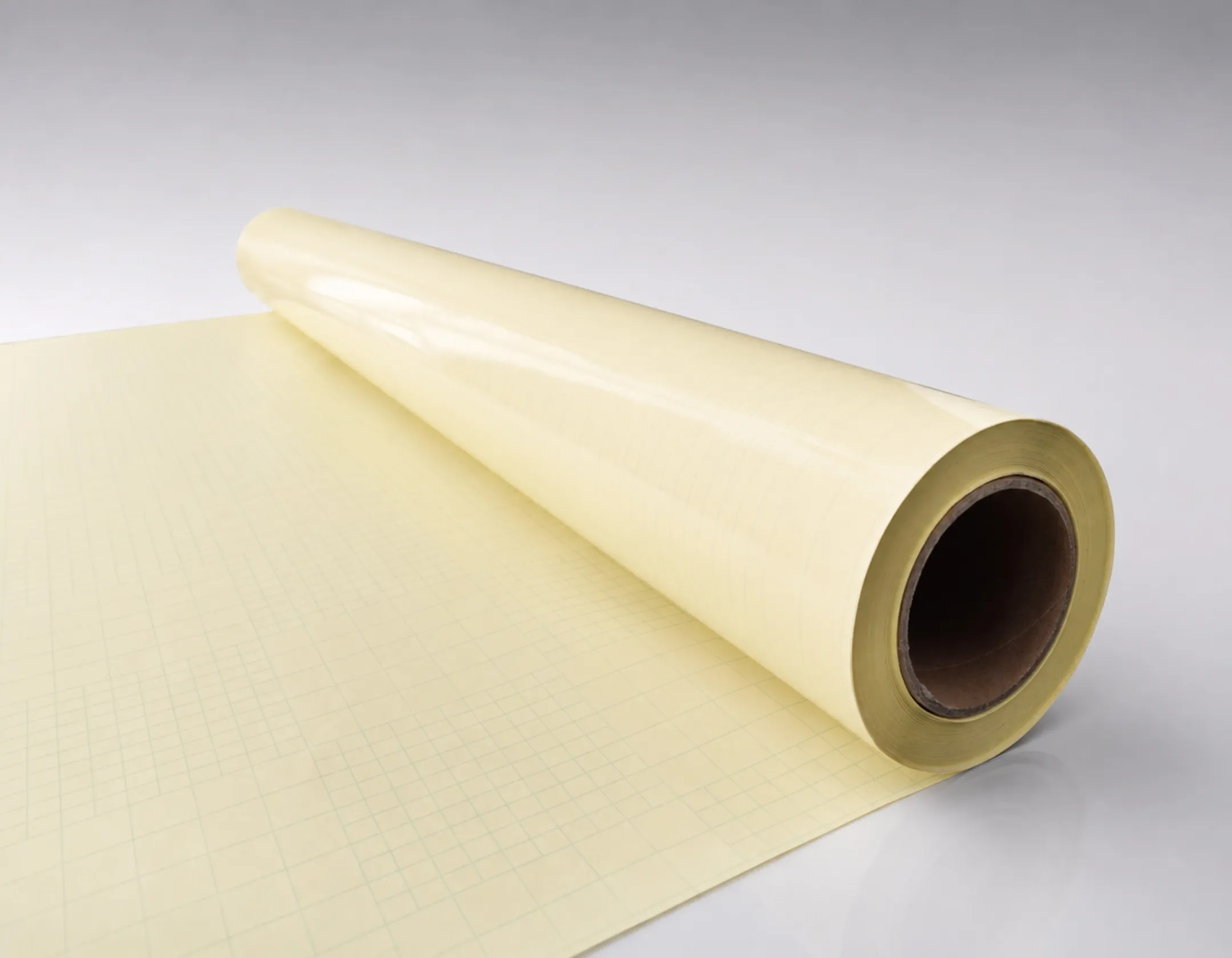

Self-Adhesive Vinyl
Vinyl, lamination and transfer media

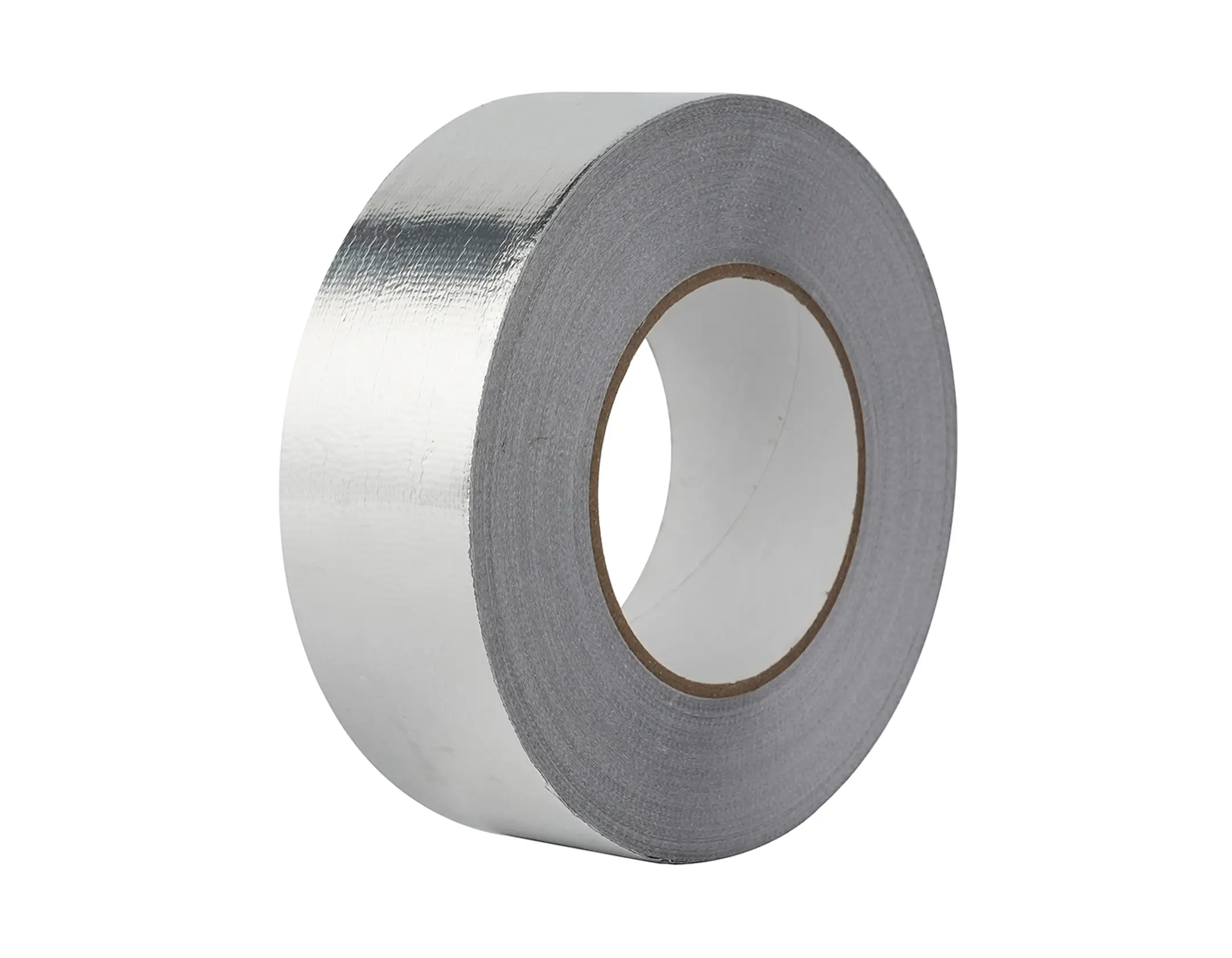

Aluminum Foil Tape
Liner-backed tape for industrial sealing
Release Force Engineered Around Your Adhesive
The same liner can behave differently with another adhesive, coating weight or aging condition. Target bands are therefore confirmed through construction-level testing.
8–15gf/25 mmStandard
10–30gf/25 mmMedium
35–50gf/25 mmTight
≥50gf/25 mmVery Tight
Reference bands only. Final values depend on the agreed test method and product construction.
From Base Material to Finished Release Liner
An integrated process covering substrate treatment, release coating, curing and converting.
- 01
Base Material
Glassine · PEK · PET · PP · MOPP · CCK
- 02
Barrier Coating
Clay · PE · PVA
- 03
Surface Modification
Corona · Plasma
- 04
Release Coating
Silicone · Fluorine-based · Non-silicone
- 05
Curing
Thermal · UV
- 06
Adhesive Compatibility
Water · Solvent · Hot melt · Silicone
- 07
Converting
Coating · Embossing · Printing · Slitting
- 08
End-Use Application
Labels · Tapes · Medical · Industrial
Reduce Development Time and Supply Complexity
- 01
Comprehensive Material Platform
Paper and film substrates with silicone, fluorine-based and other non-silicone release systems.
- 02
Integrated Manufacturing
Coordinated base material, coating, laminating, slitting and converting capabilities.
- 03
Application Matching
Recommendations consider adhesive chemistry, converting process and end-use conditions together.
- 04
Multi-Site Supply Support
Manufacturing and service resources in China, Vietnam and Malaysia support supply flexibility.
What Buyers Usually Need to Confirm
A clear construction brief helps reduce back-and-forth and makes sampling more useful
YG Group offers glassine, CCK, PEK, MGK, PET, PP and MOPP release liners. Different basis weights, thicknesses, colors and coating configurations are available for pressure-sensitive labels, adhesive tapes, digital printing materials, medical products, electronics and industrial applications.
Get a Release Liner Recommendation
Share your application, adhesive system and converting requirements. Our team will review your information and recommend a suitable release liner construction or next-step testing plan.
End use and adhesive system- Preferred base material or open to recommendation
- Target release force, dimensions and annual volume
