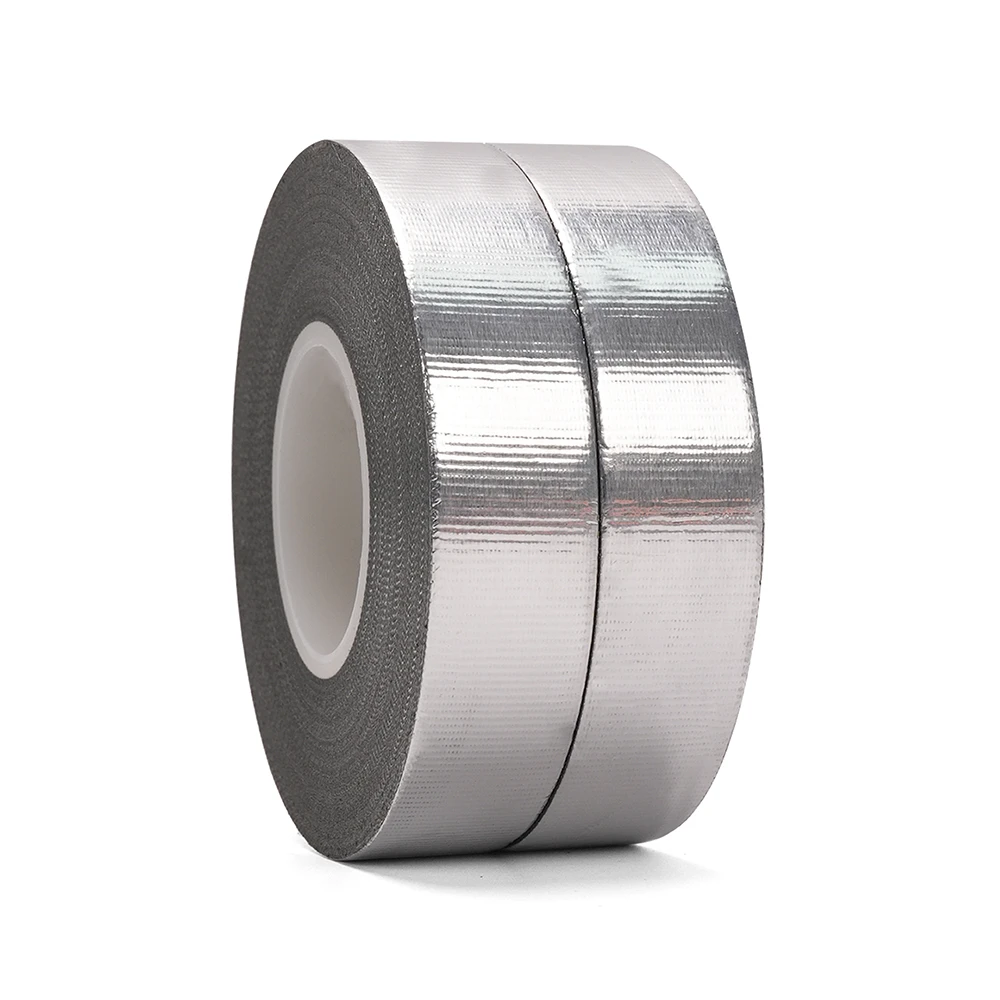

01. Wire Harness Aluminum Foil Tape.webp

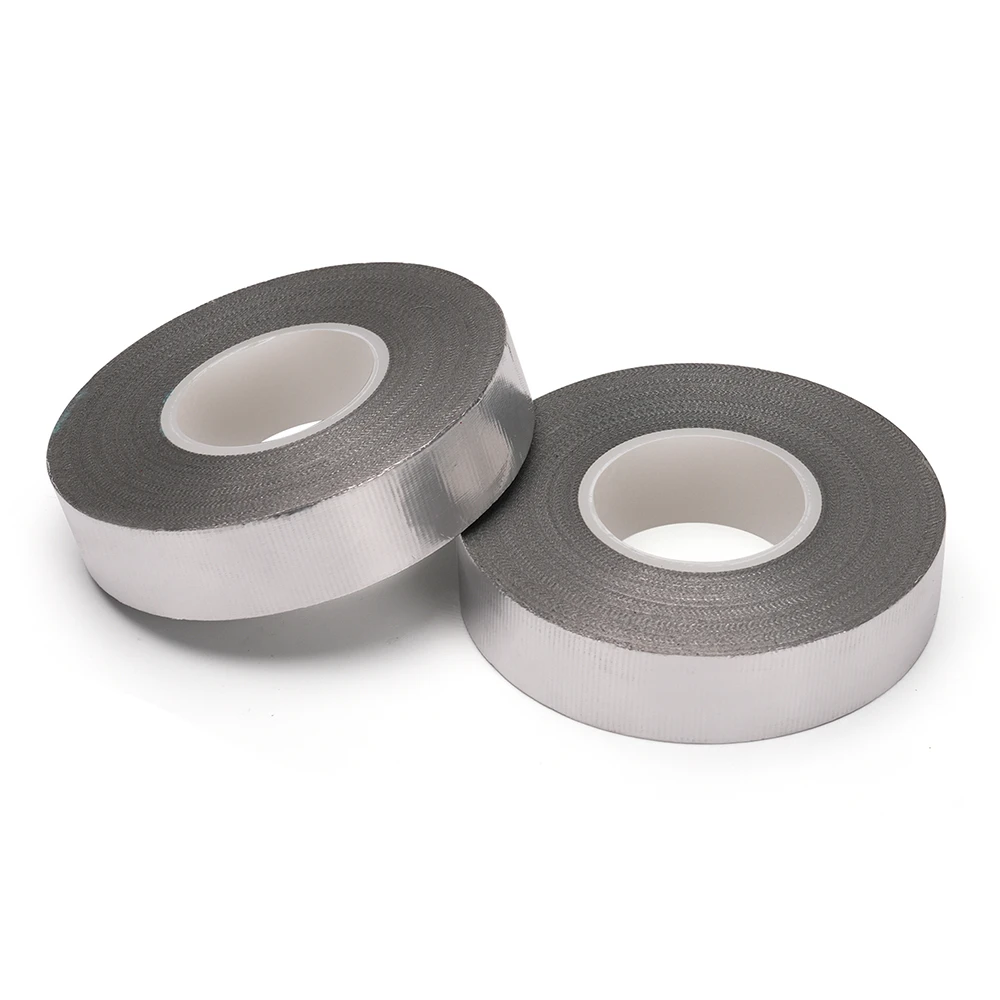

08. Wire Harness Aluminum Foil Tape.webp

02. Wire Harness Aluminum Foil Tape.webp

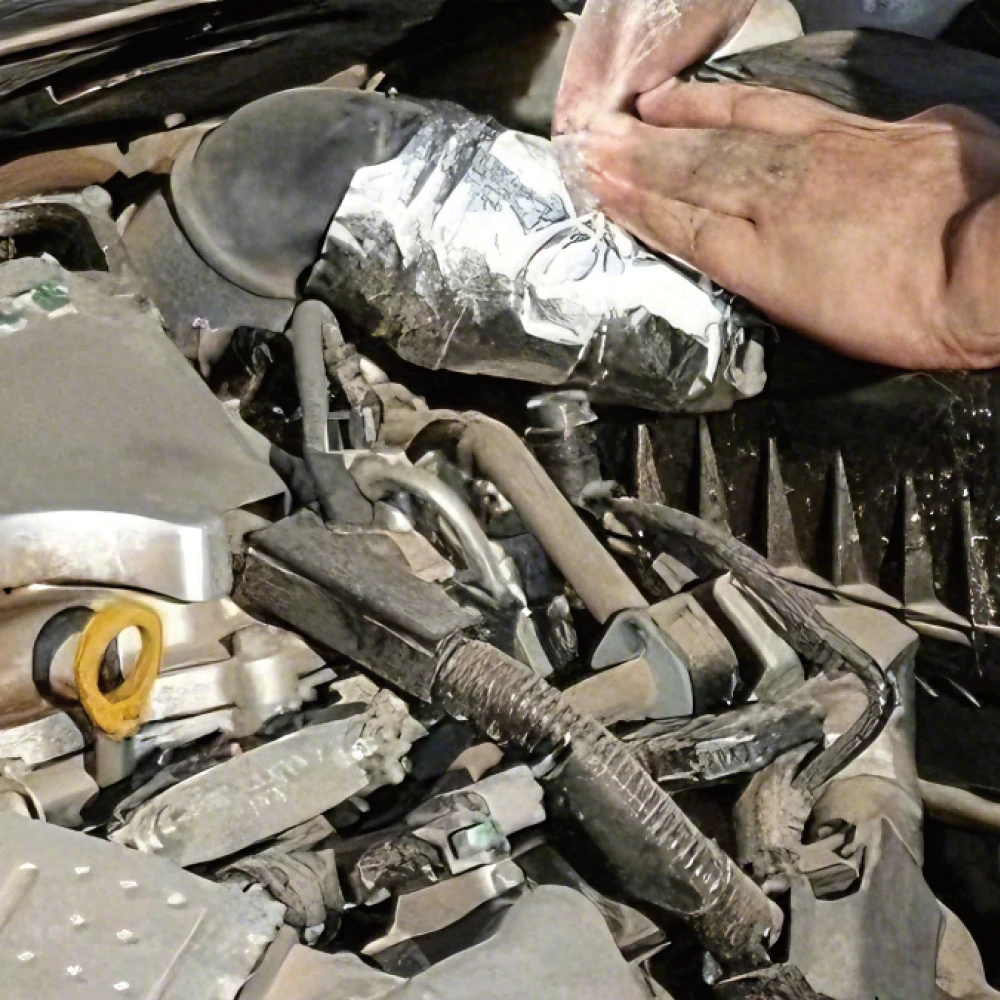

1. Wire Harness Aluminum Foil Tape for engine compartment wrapping.webp

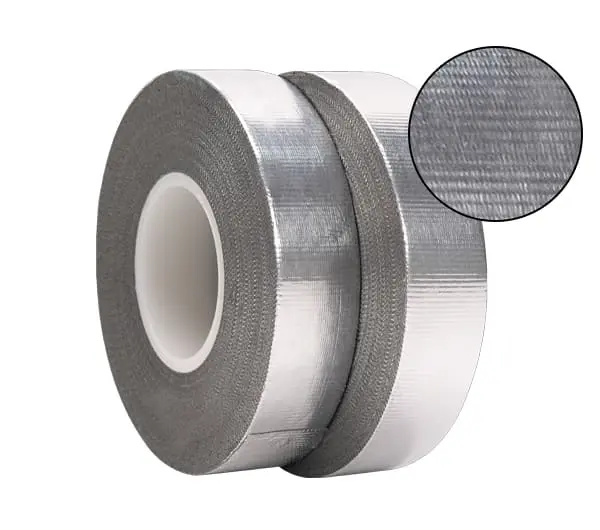

Wire Harness Aluminum Foil Tape

Made of aluminum foil as backing, coated with silicone adhesive, and laminated with fiberglass.

Features:

Moisture & radiation protection
Corrosion resistant
Flame retardant
High temperature performance

Applications:

Automotive wiring harness
Engine compartment
Exhaust & firewall areas
HVAC & coolant pipelines

Request Free Sample Catalog

Customization Options

Code	Adhesive	Total Thickness	Peel Adhesion	Tensile Strength	Temp Resistance
436G-W	Silicone	200μm	≥5.1N/in	≥150N/in	200℃ (long-term)/260℃ (short-term)

*We support custom options, including:
Width, length, thickness, color, printing, logo, packaging, core size, adhesive type, jumbo roll or finished roll supply

Supplier's Popular Products

Name of Product

Total Thickness

Adhesive

Peel Adhesion

Tensile Strength

Reinforced Aluminum Foil Tape (FSK)

100μm

Solvent-Based

≥12N/in

≥50N/in

Cross Reinforced Aluminum Foil Tape

130μm

Natural Rubber

≥12N/in

≥80N/in

Wire Harness Aluminum Foil Tape

200μm

Silicone

≥5.1N/in

≥150N/in

Glossy Aluminum Foil Tape

56µm

Water-Based

≥8.5N/in

≥38N/in

Matte Aluminum Foil Tape

100μm

Solvent-Based

≥19N/in

≥75N/in

Laminated Linerless Aluminum Foil

64μm

Water-Based

≥8.5N/in

≥100N/in

Linerless Aluminum Foil (Pure Aluminum)

65μm

Solvent-Based

≥15N/in

≥45N/in

Flame Retardant Aluminum Foil Tape

30μm

Solvent-Based

≥13N/in

≥38N/in

Aluminum Foil Glass Cloth Tape

120μm

Solvent-Based

≥14N/in

≥300N/in

Wire Harness Aluminum Foil Tape FAQ

Is this tape used in automotive manufacturing?

How does it protect against heat?

Does it prevent corrosion on metal pipes?

Can it be used in high-vibration areas?
